Automated welding of aluminium outrigger pads

Aluminium outrigger pads are used for stabilising mobile cranes, concrete pumps and folding cranes. The use of extruded aluminium profiles creates a stabiliser system that is both lightweight and dimensionally stable. Ideal for intensive use on construction sites.

For our regular customer Verberk Group - Voskuilen, we process the extruded profiles and drawings they supply into a stamped plate.

Milling and turning

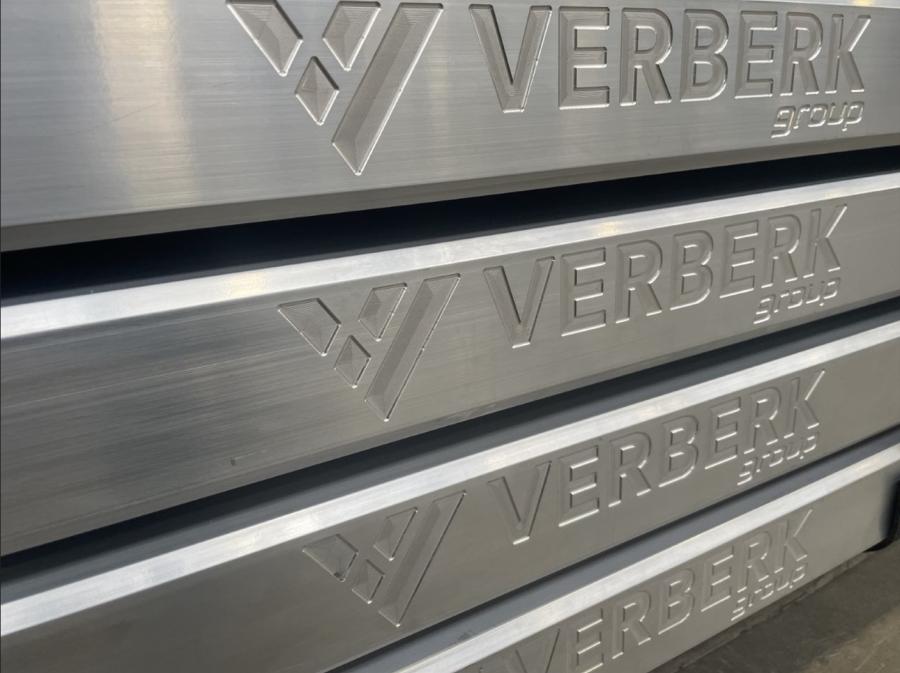

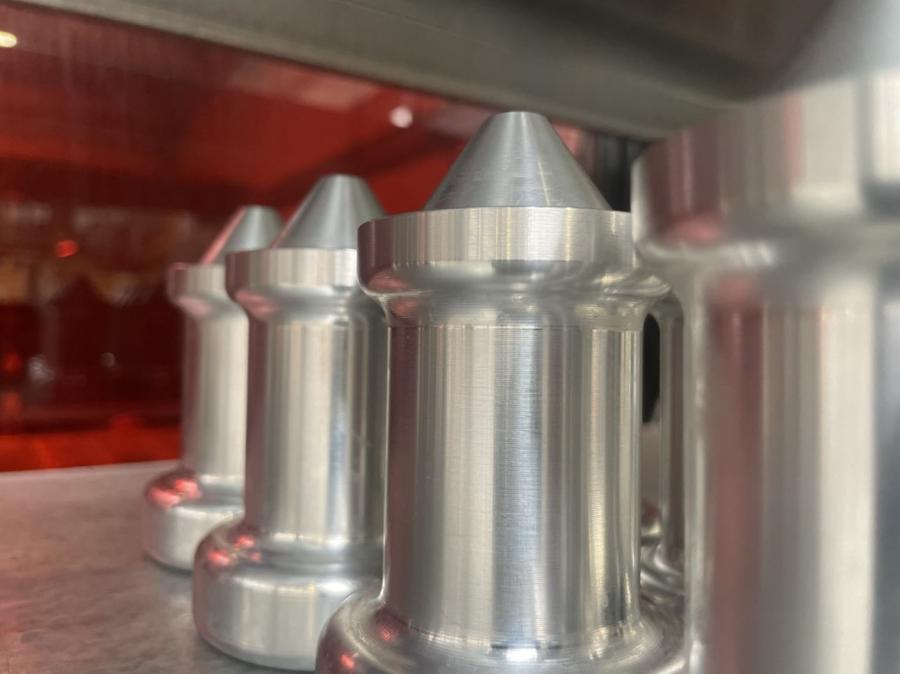

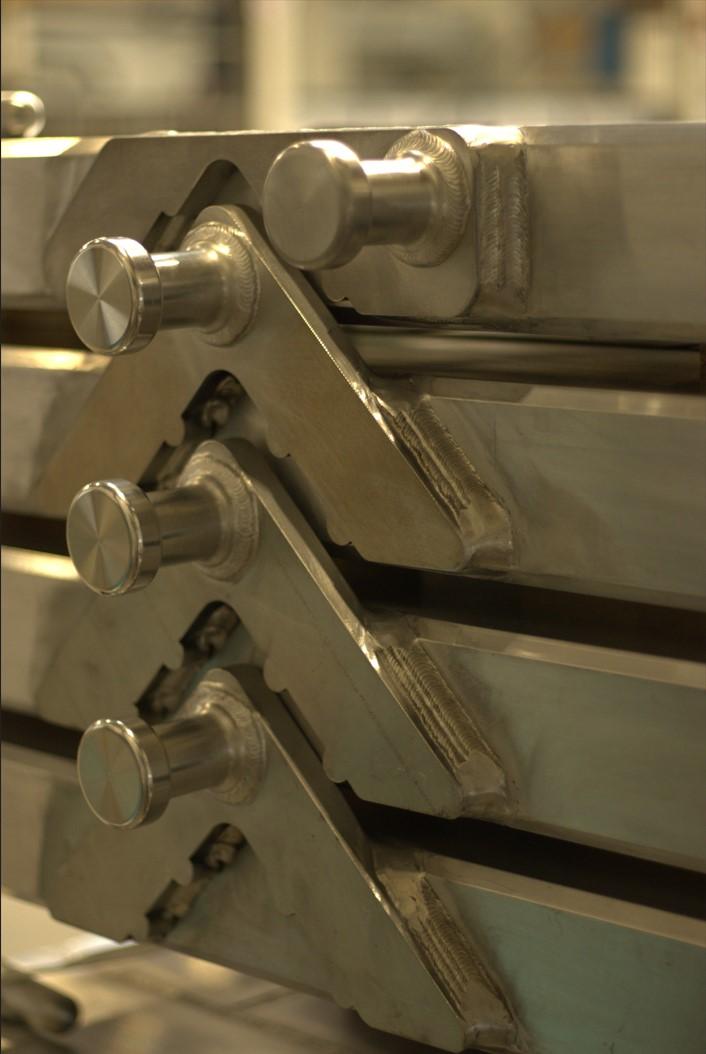

In our machining department, the tubes are milled to size and weld edges are applied to ensure a reliable and reproducible welding process. Holes are drilled according to the drawing and the customer's name is engraved into the material. The lifting points are also turned in a way that they can be welded directly onto the robot.

Modular structure: subassemblies between humans and robots
For maximum efficiency, the welding process is divided into several phases:
1. The assembler builds the sub-assemblies, carefully positioning and tacking all parts and tolerances.
2. The attached sub-assemblies are sent to the welding robot, which welds the parts completely.
3. The welded parts are returned to the assembler, where all sub-components are assembled into a complete outrigger plate.

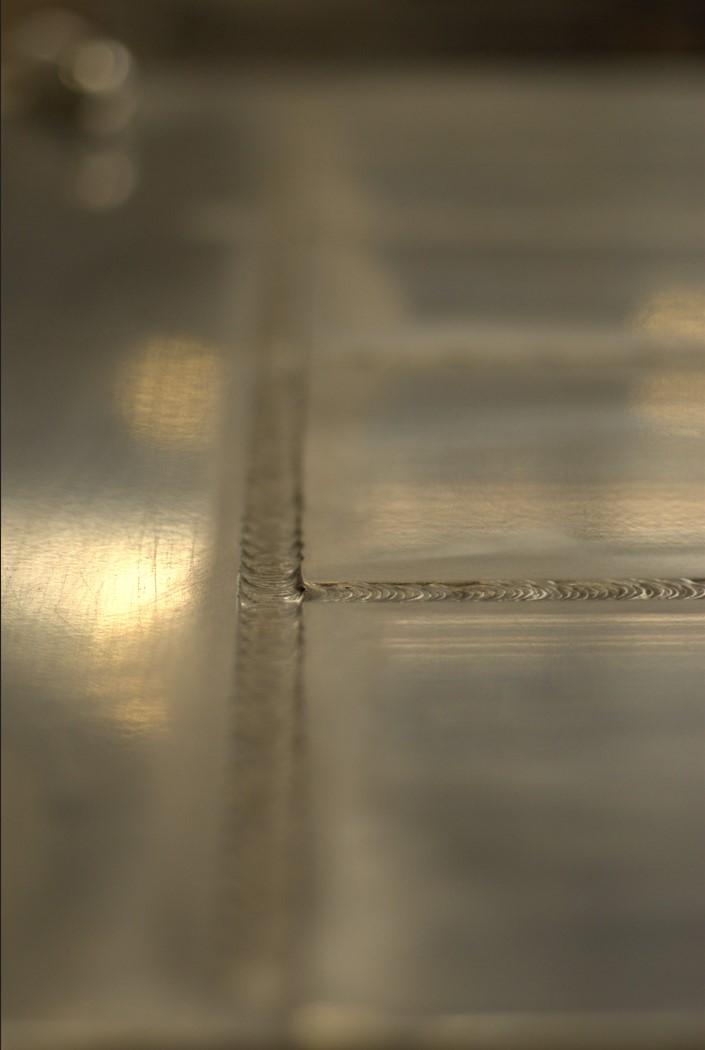

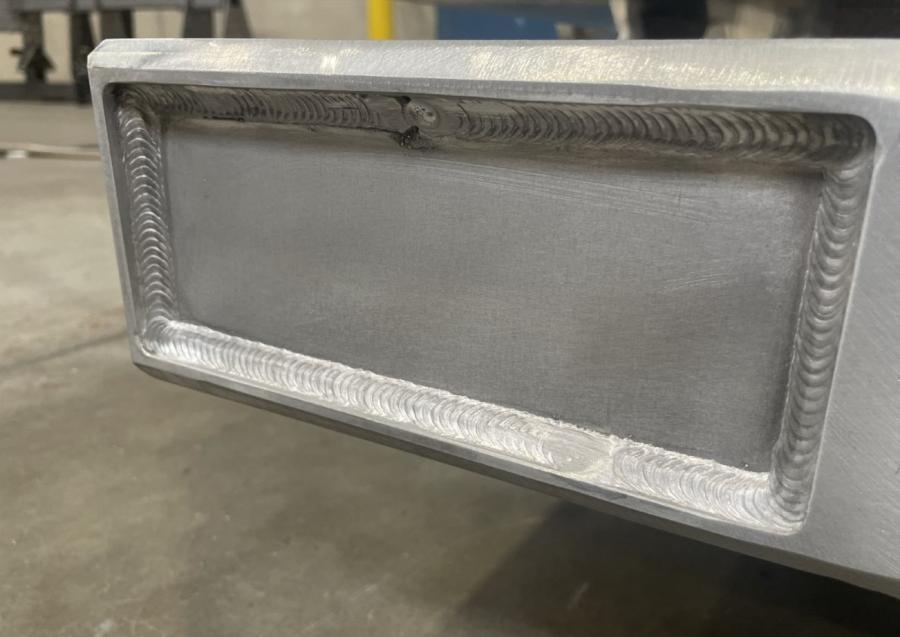

4. The complete structure is returned to the robot, where the long, continuous weld seams are finished to a consistent quality.

This interaction between craftsmanship and robot technology creates an extremely stable and reproducible process.  Ideal for both small series and continuous production

Het result

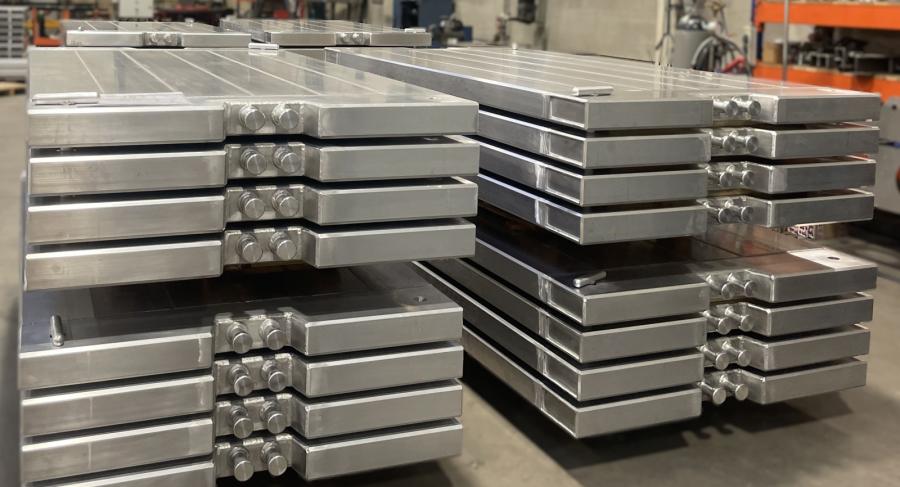

Through a combination of precise pre-processing, a well-thought-out division of the welding process and the use of advanced welding robotics, we deliver stamping plates with a smooth finish, consistent quality and reliable turnaround times. The result is a high-quality product that is fully reproducible, even in series production.

Whether it concerns customised or serial work, we are happy to think along with you. Curious about which product we could weld for you using automation?

Order outrigger plates?
These custom-made stamping plates with a handy stacking system are offered by Verberk Group. If you are interested, please contact them.
